Overview

• Recap on distributions

• More about the normal distribution

• Sampling

• Sampling distribution

• Standard error

• Central Limit Theorem

Objectives

After this lecture you will understand

• that there exist mathematical functions that describe different distributions

• what makes the normal distribution normal and what are its properties

• how random fluctuations affect sampling and parameter estimates

• the function of the sampling distribution and the standard error

• the Central Limit Theorem

With this knowledge you'll build a solid foundation for understanding all the statistics we will be learning in this programme!

It's all Greek to me!

• $\mu$ is the population mean

• $\overline{x}$ is the sample mean

• $\hat{\mu }$ is the estimate of the population mean

• Same with SD: $\sigma$, $s$, and $\hat{\sigma }$

• Greek is for populations, Latin is for samples, hat is for population estimates

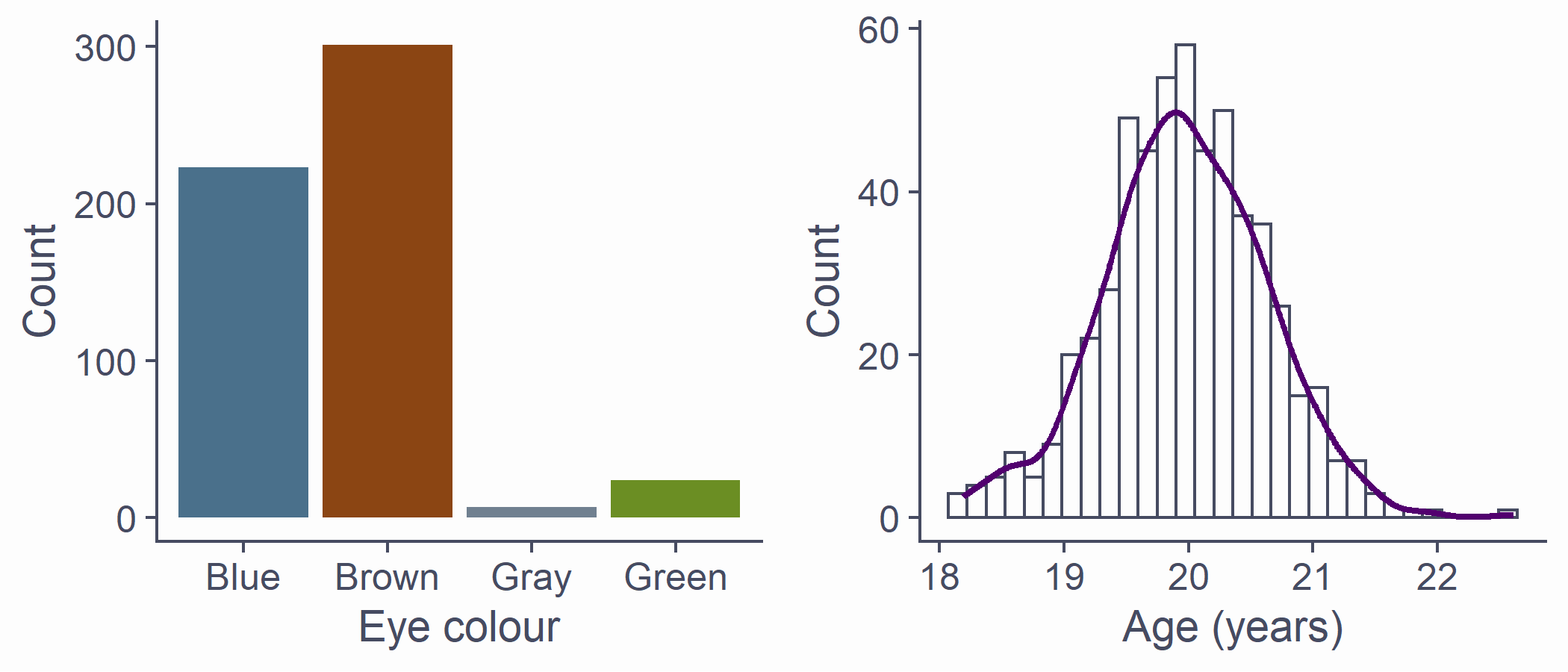

Recap on distributions

• Numerically speaking, the number of observations per each value of a variable
• Which values occur more often and which less often
• The shape formed by the bars of a bar chart/histogram

df <- tibble(eye_col = sample(c("Brown", "Blue", "Green", "Gray"), 555,
                        replace = T, prob = c(.55, .39, .04, .02)),
             age = rnorm(length(eye_col), 20, .65))
p1 <- df %>%
  ggplot(aes(x = eye_col)) +
  geom_bar(fill = c("skyblue4", "chocolate4", "slategray", "olivedrab"), colour=NA) +
  labs(x = "Eye colour", y = "Count")
p2 <- df %>%
  ggplot(aes(x = age)) +
  geom_histogram() +
  stat_density(aes(y = ..density.. * 80), geom = "line", color = theme_col, lwd = 1) +
  labs(x = "Age (years)", y = "Count")
plot_grid(p1, p2)

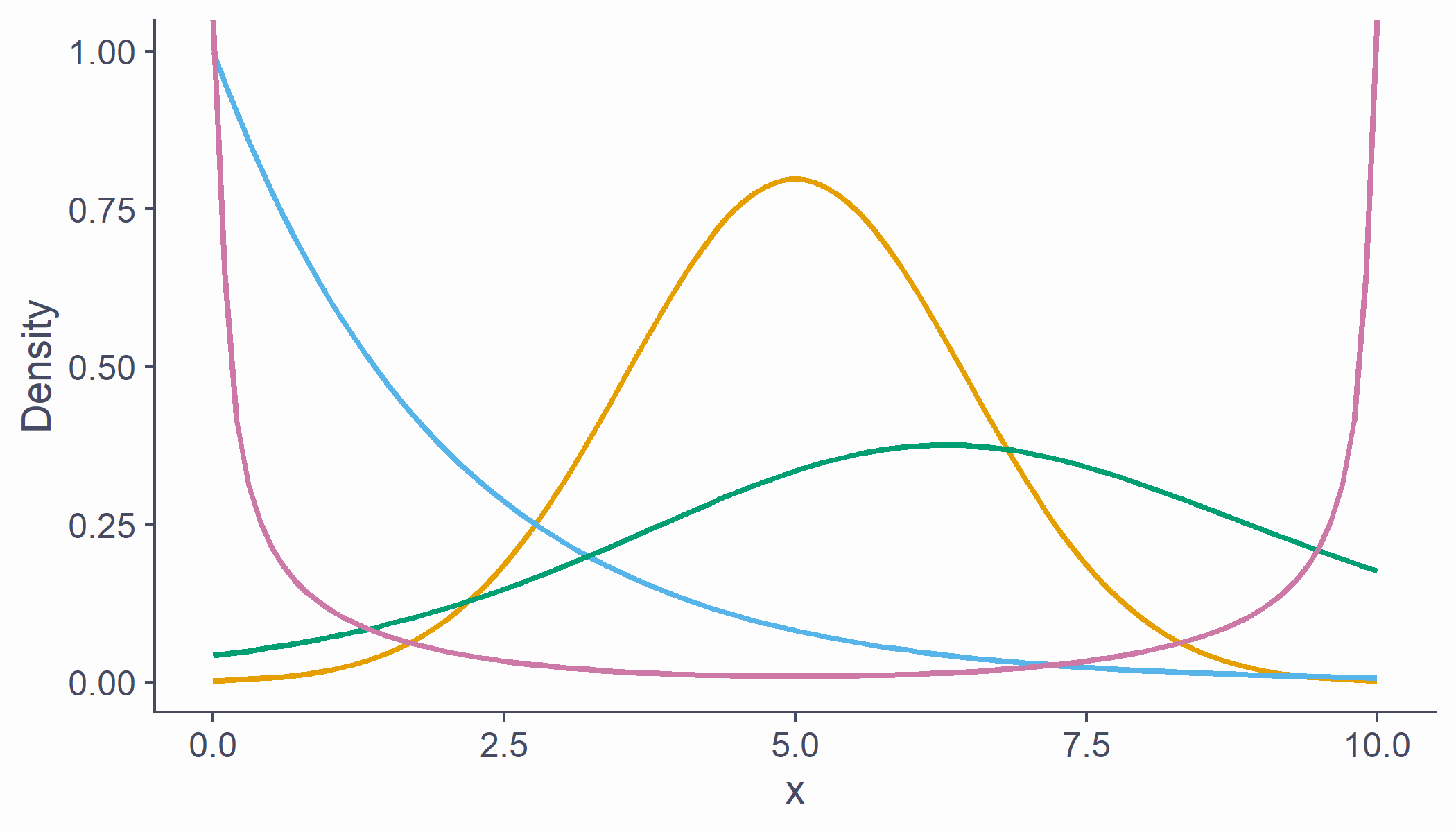

Known distributions

• Some shapes are "algebraically tractable", e.g., there is a maths formula to draw the line
• We can use them for statistics

df <- tibble(x = seq(0, 10, length.out = 100),
             norm = dnorm(scale(x), sd = .5),
             chi = dchisq(x, df = 2) * 2,
             t = dt(scale(x), 5, .5),
             beta = (dbeta(x / 10, .5, .5) / 4) - .15)
cols <- c("#E69F00", "#56B4E9", "#009E73", "#CC79A7")
df %>%
  ggplot(aes(x = x)) +
  geom_line(aes(y = norm), color = cols[1], lwd = 1) +
  geom_line(aes(y = chi), color = cols[2], lwd = 1) +
  geom_line(aes(y = t), color = cols[3], lwd = 1) +
  geom_line(aes(y = beta), color = cols[4], lwd = 1) +
  labs(x = "x", y = "Density")

The normal distribution

• AKA Gaussian distribution, The bell curve

• The one you need to understand

• Symmetrical and bell-shaped

• Not every symmetrical bell-shaped distribution is normal!

• It's also about the proportions

  • The normal distribution has fixed proportions and is a function of two parameters, $\mu$ (mean) and $\sigma$ (or SD; standard deviation)

The normal distribution

• Peak/centre of the distribution is its mean (also mode and median)
• Changing mean (centring) shifts the curve left/right
• SD determines steepness of the curve (small $\sigma$ = steep curve)
• Changing SD is also known as scaling

Area below the normal curve

• No matter the particular shape of the given normal distribution, the proportions with respect to SD are the same
  • ∼68.2% of the area below the curve is within ±1 SD from the mean
  • ∼95.4% of the area below the curve is within ±2 SD from the mean
  • ∼99.7% of the area below the curve is within ±3 SD from the mean
• We can calculate the proportion of the area with respect to any two points

quantiles <- tibble(x1 = -(1:3), x2 = 1:3, y = c(.21, .12, .03))
tibble(x = seq(-4, 4, by = .1), y = dnorm(x, 0, 1)) %>%
  ggplot(aes(x, y)) +
  geom_density(stat = "identity", color = default_col, fill = default_col) +
  geom_density(data = ~ subset(.x, x >= quantiles$x1[3] & x <= quantiles$x2[3]),
               stat = "identity", color = default_col, fill = bg_col) +
  geom_density(data = ~ subset(.x, x >= quantiles$x1[2] & x <= quantiles$x2[2]),
               stat = "identity", color = NA, fill = second_col) +
  geom_density(data = ~ subset(.x, x >= quantiles$x1[1] & x <= quantiles$x2[1]),
               stat = "identity", color = NA, fill = theme_col) +
  geom_segment(data = quantiles,
               aes(x = x1, xend = x2, y = y, yend = y),
               arrow = arrow(length = unit(0.2, "cm"), angle = 15,
                             type = "closed", ends = "both"),
               color = c(bg_col, default_col, default_col)) +
  geom_line(data = tibble(x = rep(c(-1, 1), 2), y = rep(c(.12, .03), each = 2)),
            aes(x, y, group = y), color = bg_col) +
  geom_line(data = tibble(x = rep(c(-(2:3), 2:3), each = 2),
                          y = as.vector(rbind(0, rep(quantiles$y[-1] + .005, 2)))),
            aes(x, y, group = x), lty = 2, color = default_col) +
  annotate("text", x = rep(0, 3), y = quantiles$y + .05,
           label = c("68.2%", "95.4%", "99.7%"), color = bg_col) +
  labs(x = "z-score", y = "Density") +
  scale_x_continuous(breaks = -4:4)

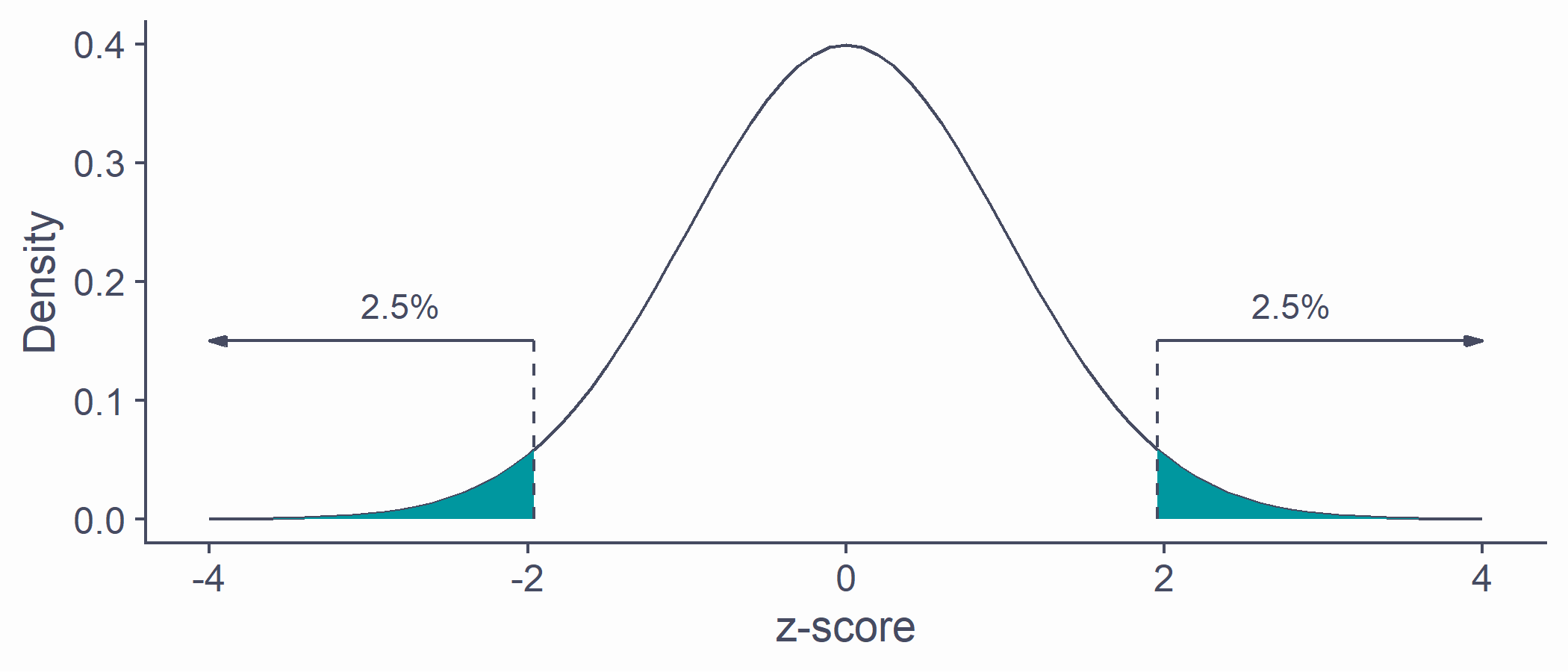

Area below the normal curve

• Say we want to know the number of SDs from the mean beyond which lie the outer 5% of the distribution

quantiles <- qnorm(.025) * c(-1, 1)
tibble(x = sort(c(quantiles, seq(-4, 4, by = .1))), y = dnorm(x, 0, 1)) %>%
  ggplot(aes(x, y)) +
  geom_line(color = default_col) +
  geom_density(data = ~ subset(.x, x >= quantiles[1]),
               stat = "identity", color = NA, fill = second_col) +
  geom_density(data = ~ subset(.x, x <= quantiles[2]),
               stat = "identity", color = NA, fill = second_col) +
  geom_line(data = tibble(x = rep(quantiles, each = 2), y = c(0, .15, 0, .15)),
            aes(x, y, group = x), lty = 2, color = default_col) +
  geom_segment(data = tibble(x = quantiles, xend = c(4, -4),
                             y = c(.15, .15), yend = c(.15, .15)),
               aes(x = x, xend = xend, y = y, yend = yend),
               arrow = arrow(length = unit(0.2, "cm"), angle = 15, type = "closed"),
               color = default_col) +
  annotate("text", x = c(-2.8, 2.8), y = .18, label = ("2.5%"), color = default_col) +
  labs(x = "z-score", y = "Density")

qnorm(p = .025, mean = 0, sd = 1) # lower cut-off

## [1] -1.959964

qnorm(p = .975, mean = 0, sd = 1) # upper cut-off

## [1] 1.959964

Critical values

• If SD is known, we can calculate the cut-off point (critical value) for any proportion of normally distributed data

qnorm(p = .005, mean = 0, sd = 1) # lowest .5%

## [1] -2.575829

qnorm(p = .995, mean = 0, sd = 1) # highest .5%

## [1] 2.575829

# most extreme 40% / bulk 60%
qnorm(p = .2, mean = 0, sd = 1)

## [1] -0.8416212

qnorm(p = .8, mean = 0, sd = 1)

## [1] 0.8416212

• Other known distributions have different cut-offs but the principle is the same

Sampling from distributions

• Collecting data on a variable = randomly sampling from distribution

• The underlying distribution is often assumed to be normal

• Some variables might come from other distributions

  • Reaction times: log-normal distribution

  • Number of annual casualties due to horse kicks: Poisson distribution

  • Passes/fails on an exam: binomial distribution

Sampling from distributions

• Samples from the same population differ from one another

# draw a sample of 10 from a normally distributed
# population with mean 100 and sd 15
rnorm(n = 6, mean = 100, sd = 15)

## [1] 101.61958  80.95560  89.62080  96.04378 106.40106  86.21514

# repeat
rnorm(6, 100, 15)

## [1]  80.31573 107.63193  85.82520  99.95288  93.55956  74.73945

Sampling from distributions

• Statistics ( $\overline{x}$, $s$, etc.) of two samples will be different
• Sample statistic (e.g., $\overline{x}$) will likely differ from the population parameter (e.g., $\mu$)

sample1 <- rnorm(50, 100, 15)
sample2 <- rnorm(50, 100, 15)
mean(sample1)

## [1] 98.56429

mean(sample2)

## [1] 105.4175

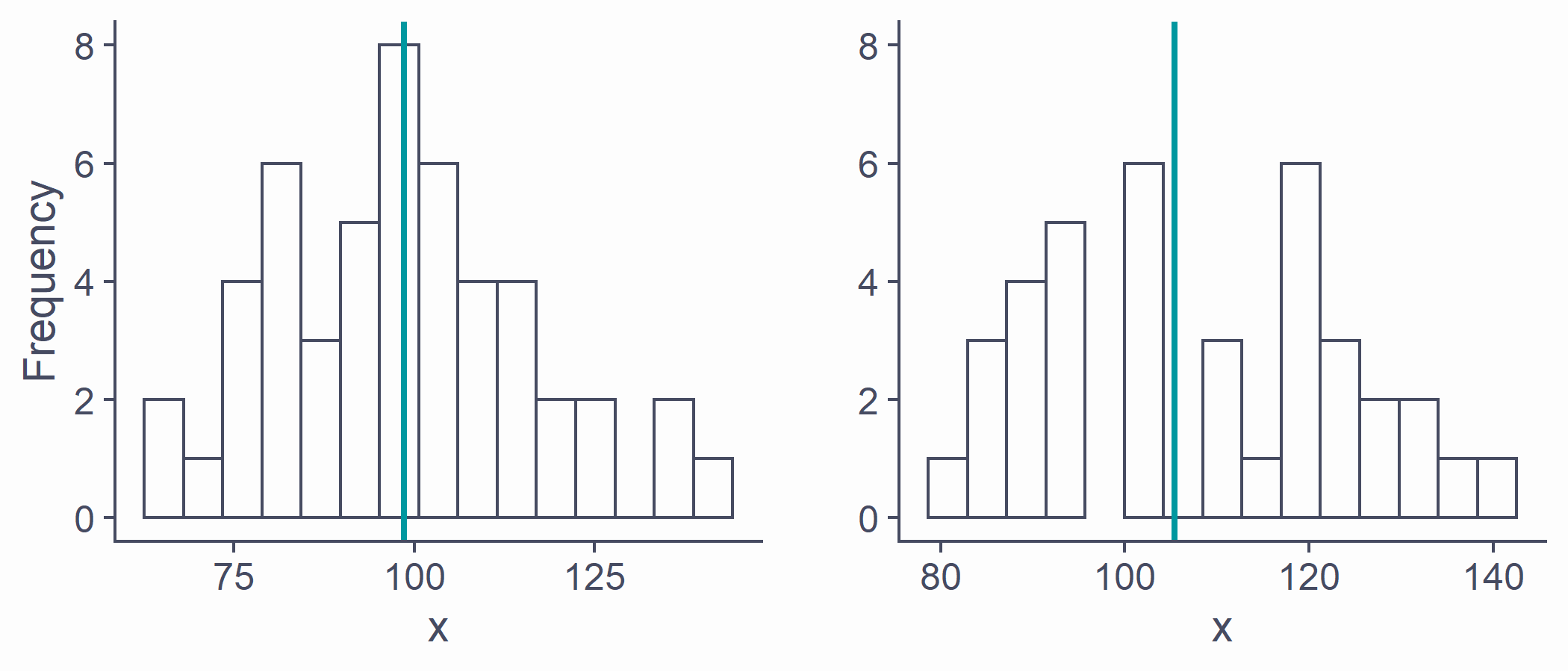

Sampling from distributions

• Statistics ( $\overline{x}$, $s$, etc.) of two samples will be different

• Sample statistic (e.g., $\overline{x}$) will likely differ from the population parameter (e.g., $\mu$)

p1 <- ggplot(NULL, aes(x = sample1)) +
  geom_histogram(bins = 15) +
  geom_vline(xintercept = mean(sample1), color = second_col, lwd = 1) +
  labs(x = "x", y = "Frequency") + ylim(0, 8)
p2 <- ggplot(NULL, aes(x = sample2)) +
  geom_histogram(bins = 15) +
  geom_vline(xintercept = mean(sample2), color = second_col, lwd = 1) +
  labs(x = "x", y = "") + ylim(0, 8)
plot_grid(p1, p2)

Sampling distribution

• If we took all possible samples of a given size (say N = 50) from the population and each time calculated $\overline{x}$, the means would have their own distribution

• This is the sampling distribution of the mean

  • Approximately normal

  • Centred around the true population mean, $\mu$

• Every statistic has its own sampling distribution (not all normal though!)

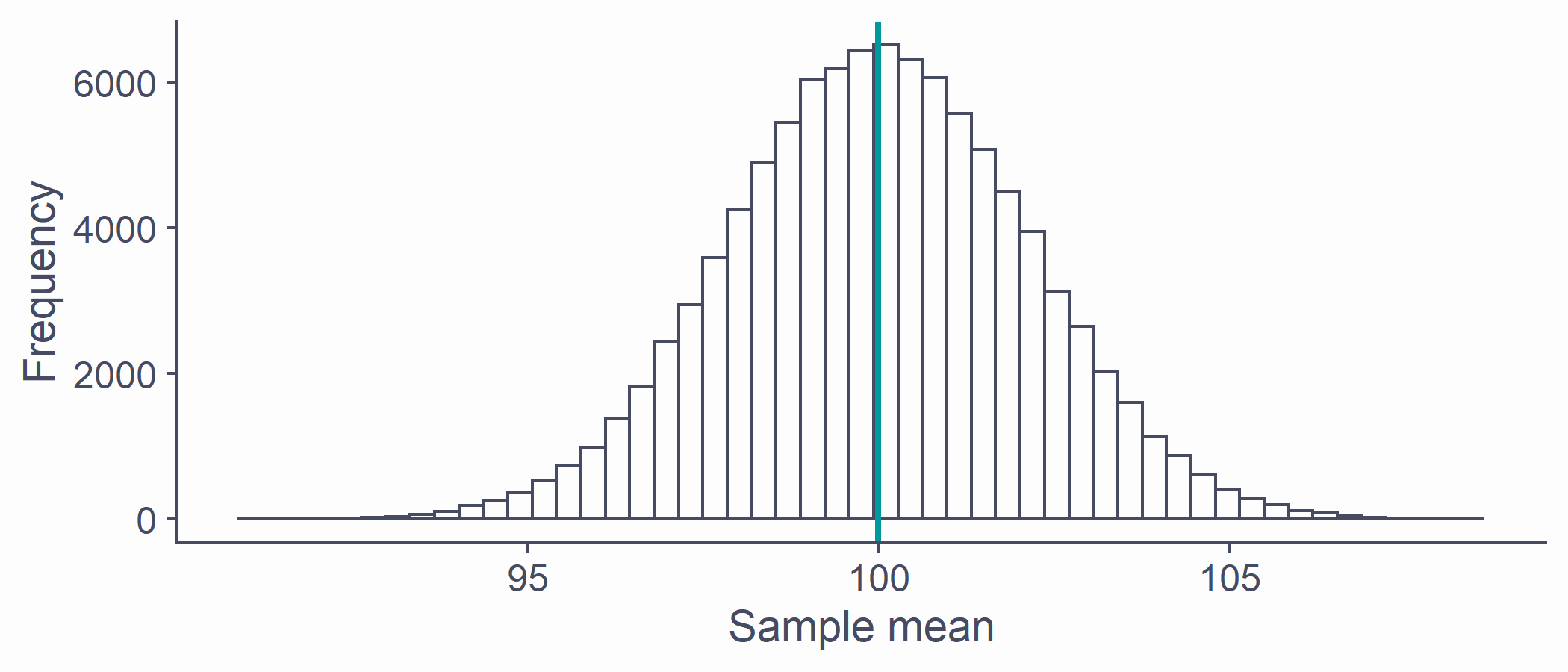

Sampling distribution

x_bar <- replicate(100000, mean(rnorm(50, 100, 15)))
mean(x_bar)

## [1] 99.99395

ggplot(NULL, aes(x_bar)) +
  geom_histogram(bins = 51) +
  geom_vline(xintercept = mean(x_bar), col = second_col, lwd = 1) +
  labs(x = "Sample mean", y = "Frequency")

Standard error

• Standard deviation of the sampling distribution is the standard error

sd(x_bar)

## [1] 2.122072

• Sampling distribution of the mean is approximately normal: ~68.2% of means of samples of size 50 from this population will be within ±2.12 of the true mean

Standard error

• Standard error can be estimated from any of the samples$$SE=\frac{SD}{\sqrt{N}}$$

samp <- rnorm(50, 100, 15)
sd(samp)/sqrt(length(samp))

## [1] 1.872102

# underestimate compared to actual SE
sd(x_bar)

## [1] 2.122072

• If ~68.2% of sample means lie within ±1.87, then there's a ~68.2% probability that $\overline{x}$ will be within ±1.87 of $\mu$

mean(samp)

## [1] 98.22903

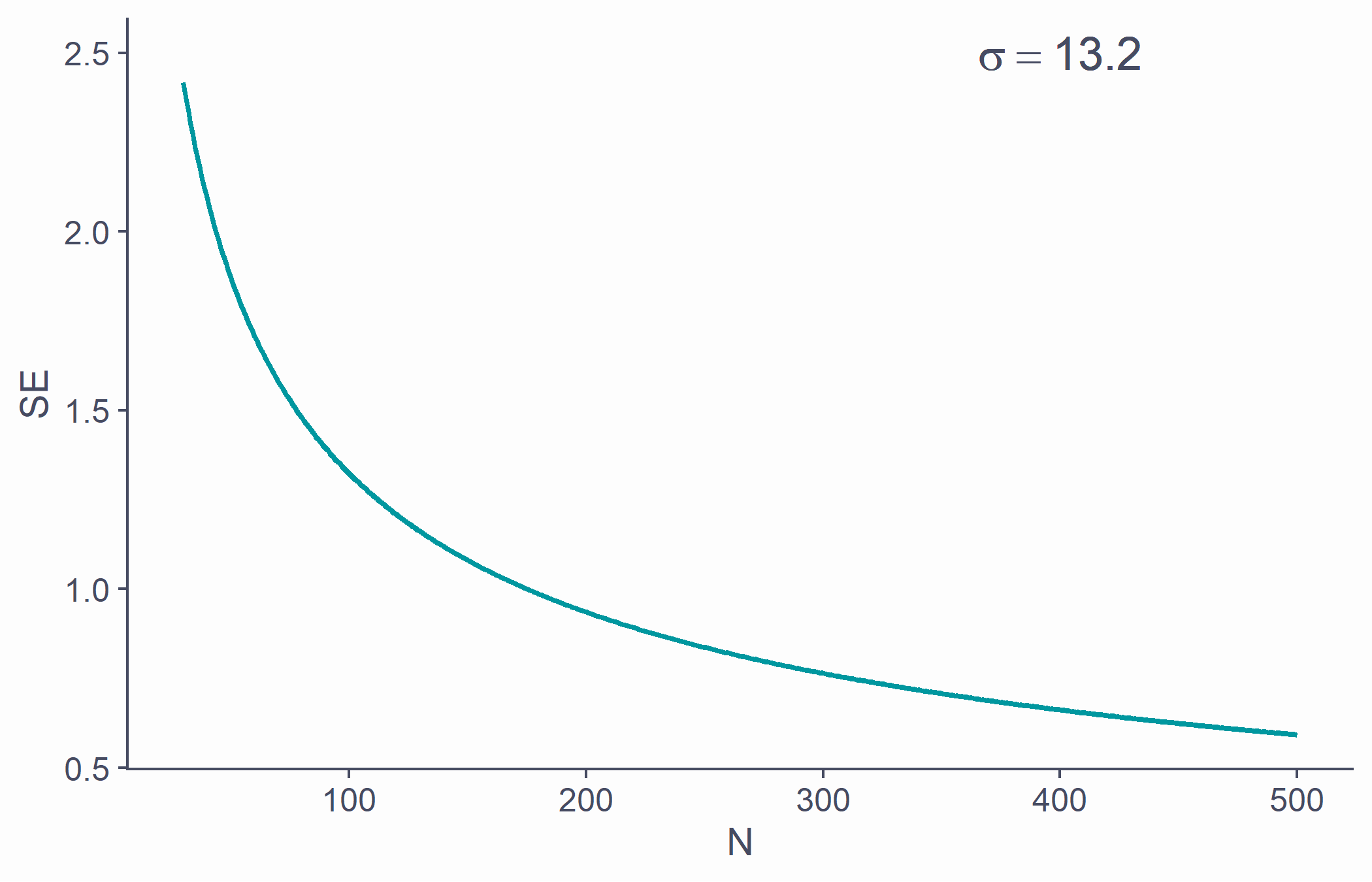

Standard error

• SE is calculated using N: there's a relationship between the two

tibble(x = 30:500, y = sd(samp)/sqrt(30:500)) %>%
  ggplot(aes(x, y)) +
  geom_line(lwd=1, color = second_col) +
  labs(x = "N", y = "SE") +
  annotate("text", x = 400, y = 2.5,
           label = bquote(sigma==.(round(sd(samp), 1))),
           color = default_col, size = 6)

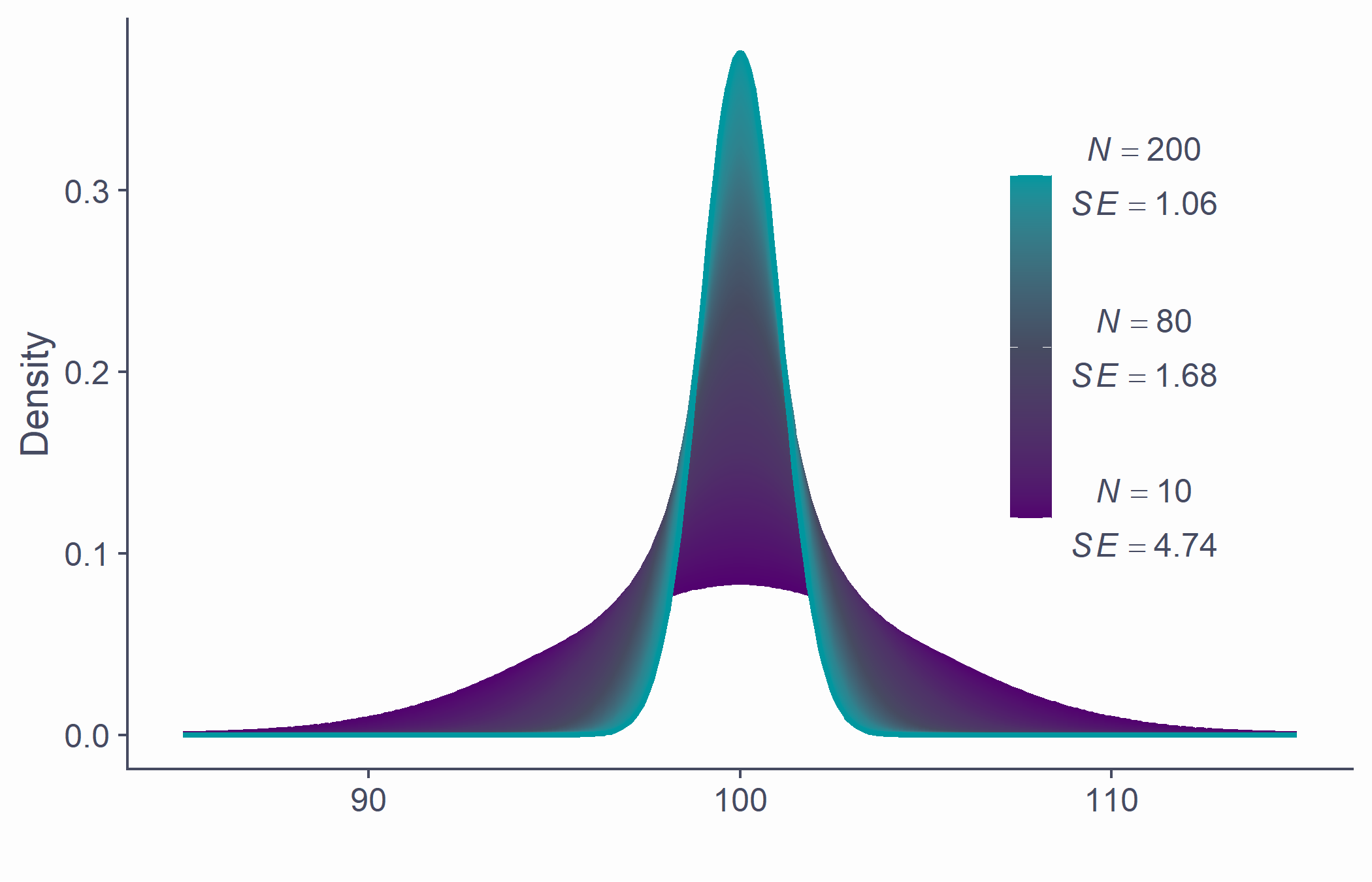

Standard error

• That is why larger samples are more reliable!

Standard error

• Allows us to gauge the resampling accuracy of parameter estimate (e.g., $\hat{\mu }$) in sample

• The smaller the SE, the more confident we can be that the parameter estimate ( $\hat{\mu }$ ) in our sample is close to those in other samples of the same size

• We don't particularly care about our specific sample: we care about the population!

The Central Limit Theorem

• Sampling distribution of the mean is approximately normal

• True no matter the shape of the population distribution!

• This is the Central Limit Theorem

  • "Central" as in "really important" because, well, it is!

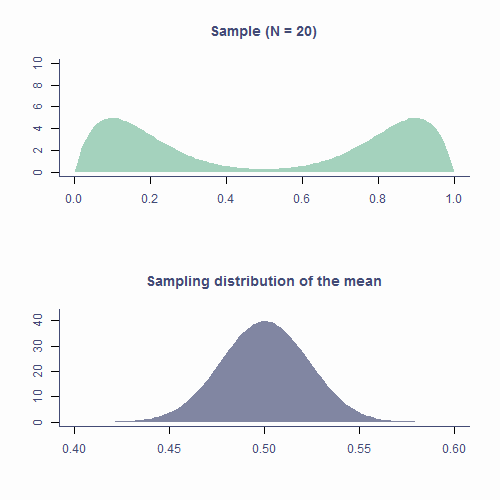

CLT in action

CLT in action

Approximately normal

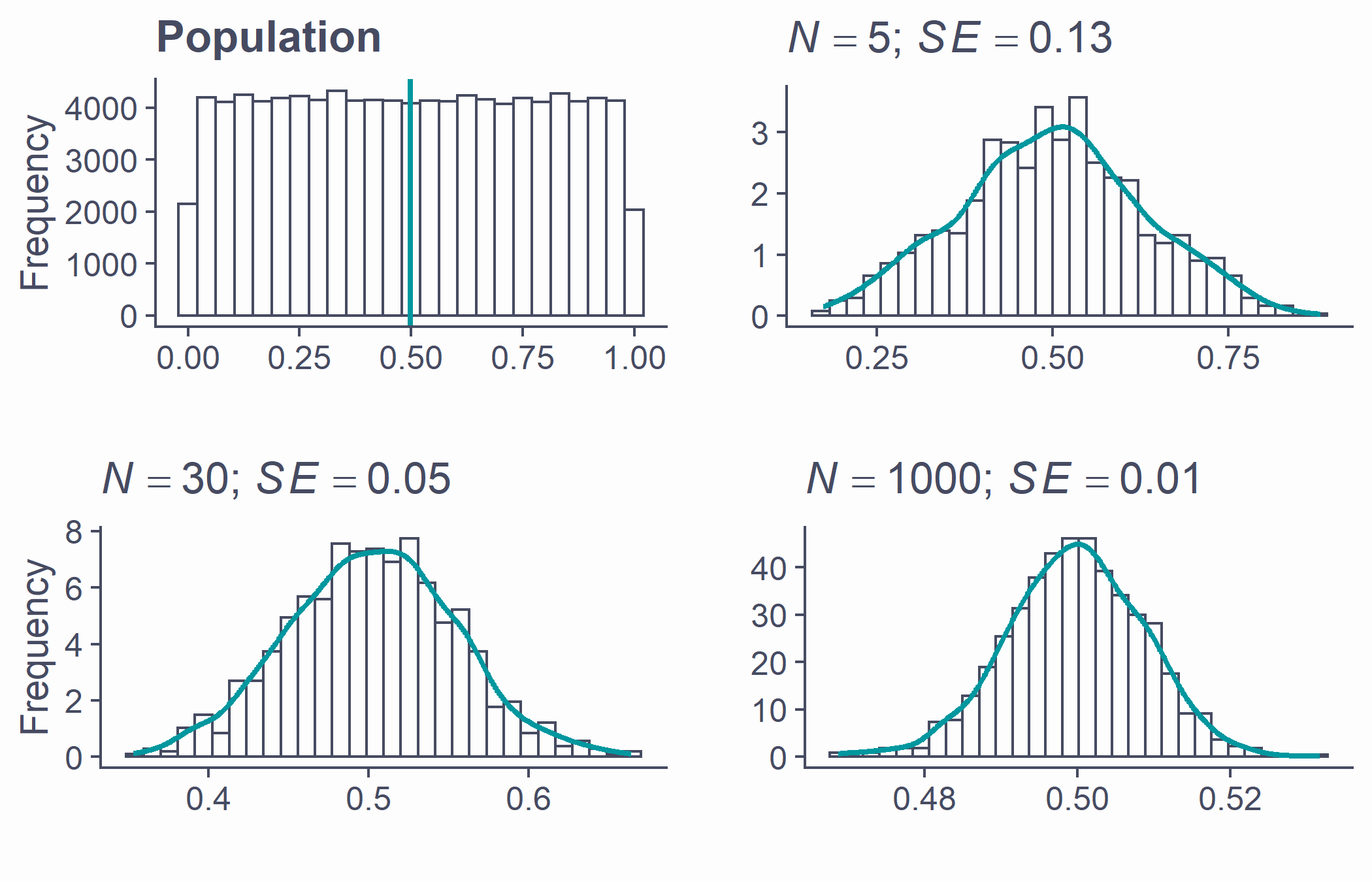

• As N gets larger, the sampling distribution of $\overline{x}$ tends towards a normal distribution with mean = $\mu$ and $SD=\frac{\sigma }{\sqrt{N}}$

par(mfrow=c(2, 2), mar = c(3.1, 4.1, 3.1, 2.1), cex.main = 2)
pop <- tibble(x = runif(100000, 0, 1)) %>%
  ggplot(aes(x)) +
  geom_histogram(bins = 25) +
  geom_vline(aes(xintercept = mean(x)), lwd = 1, color = second_col) +
  labs(title = "Population", x = "", y = "Frequency")
plots <- list()
n <- c(5, 30, 1000)
ylab <- c("", "Frequency", "")
for (i in 1:3) {
plot_tib <- tibble(x = replicate(1000, mean(runif(n[i], 0, 1))))
plots[[i]] <- ggplot(plot_tib, aes(x)) +
  geom_histogram(aes(y = ..density..), bins = 30) +
  labs(title = bquote(paste(
    italic(N)==.(n[i]),
    "; ",
    italic(SE)==.(round(sd(plot_tib$x), 2)))),
    x = "", y = ylab[i]) +
  # xlim(0:1) +
  stat_density(geom = "line", color = second_col, lwd = 1)
}
plot_grid(pop, plots[[1]], plots[[2]], plots[[3]])

Take-home message

• Distribution is the number of observations per each value of a variable

• There are many mathematically well-described distributions

  • Normal (Gaussian) distribution is one of them

• Each has a formula allowing the calculation of the probability of drawing an arbitrary range of values

Take-home message

• Normal distribution is

  • continuous
  • unimodal
  • symmetrical
  • bell-shaped
  • it's the right proportions that make a distribution normal!

• In a normal distribution it is true that

  • ∼68.2% of the data is within ±1 SD from the mean
  • ∼95.4% of the data is within ±2 SD from the mean
  • ∼99.7% of the data is within ±3 SD from the mean

• Every known distribution has its own critical values

Take-home message

• Statistics of random samples differ from parameters of a population

• As N gets bigger, sample statistics approaches population parameters

• Distribution of sample parameters is the sampling distribution

• Standard error of a parameter estimate is the SD of its sampling distribution

  • Provides margin of error for estimated parameter

  • The larger the sample, the less the estimate varies from sample to sample

Take-home message

• Central Limit Theorem

  • Really important!

  • Sampling distribution of the mean tends to normal even if population distribution is not normal

• Understanding distributions, sampling distributions, standard errors, and CLT it most of what you need to understand all the stats techniques we will cover
